AIRHANG
AIRHANG

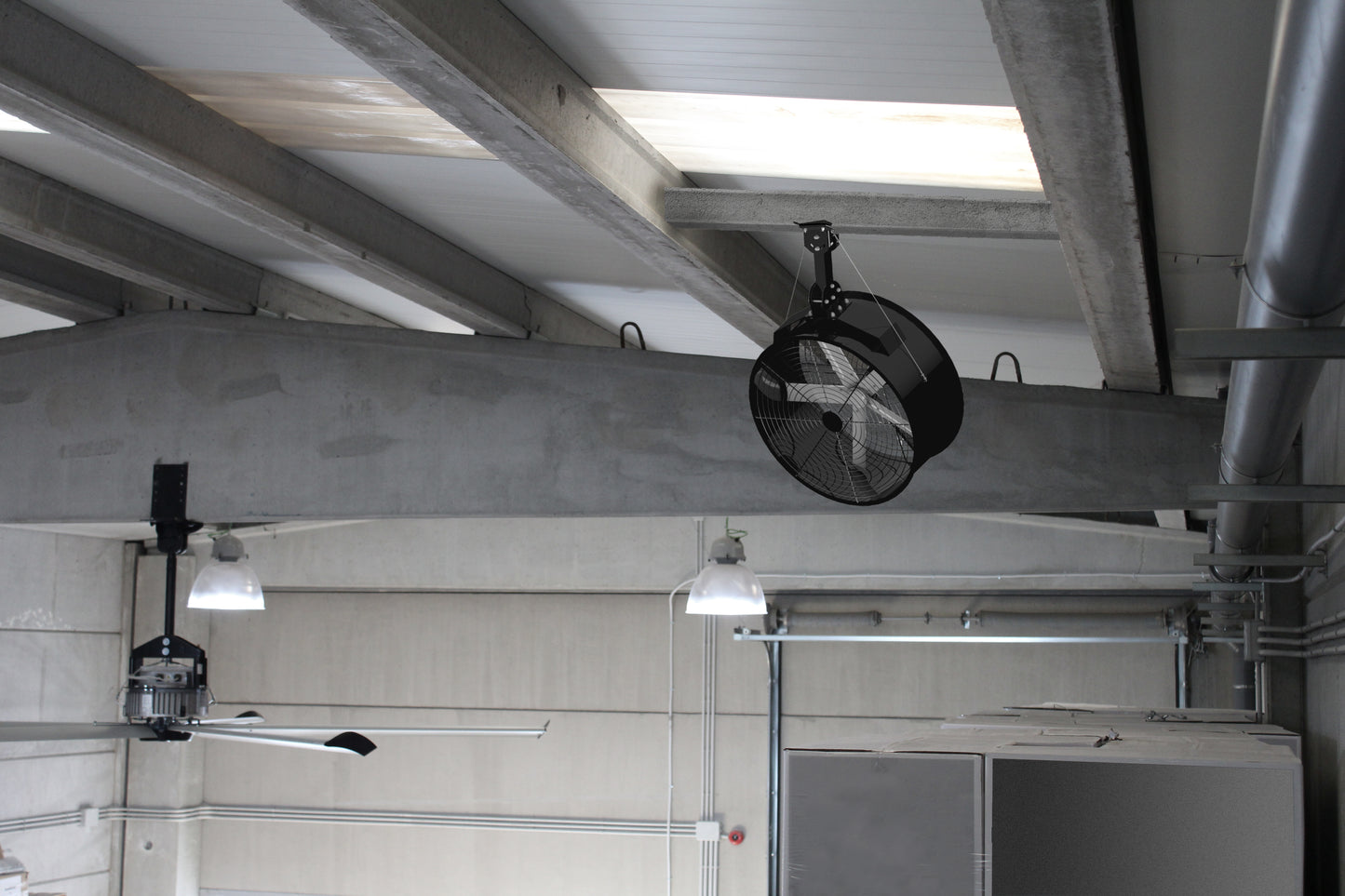

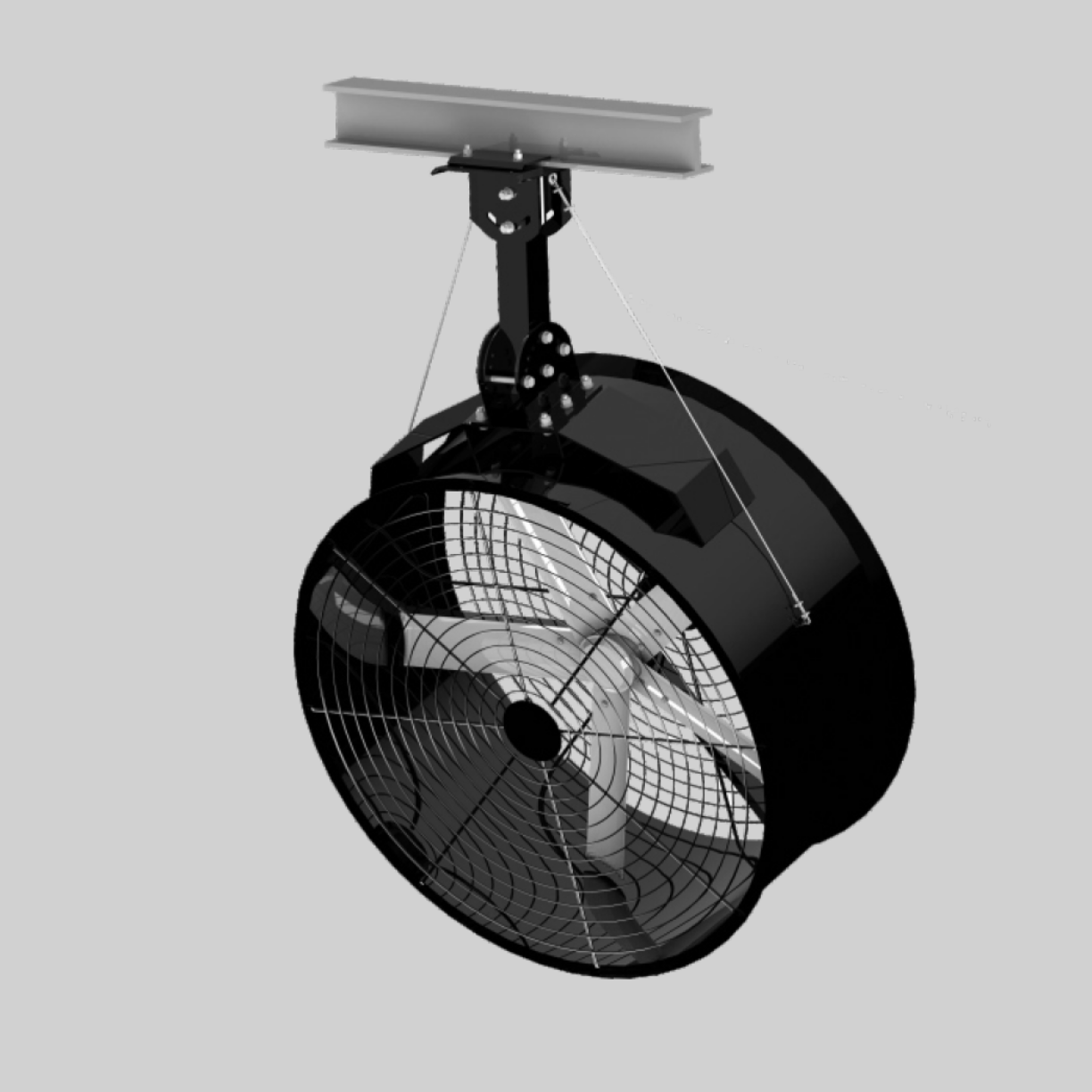

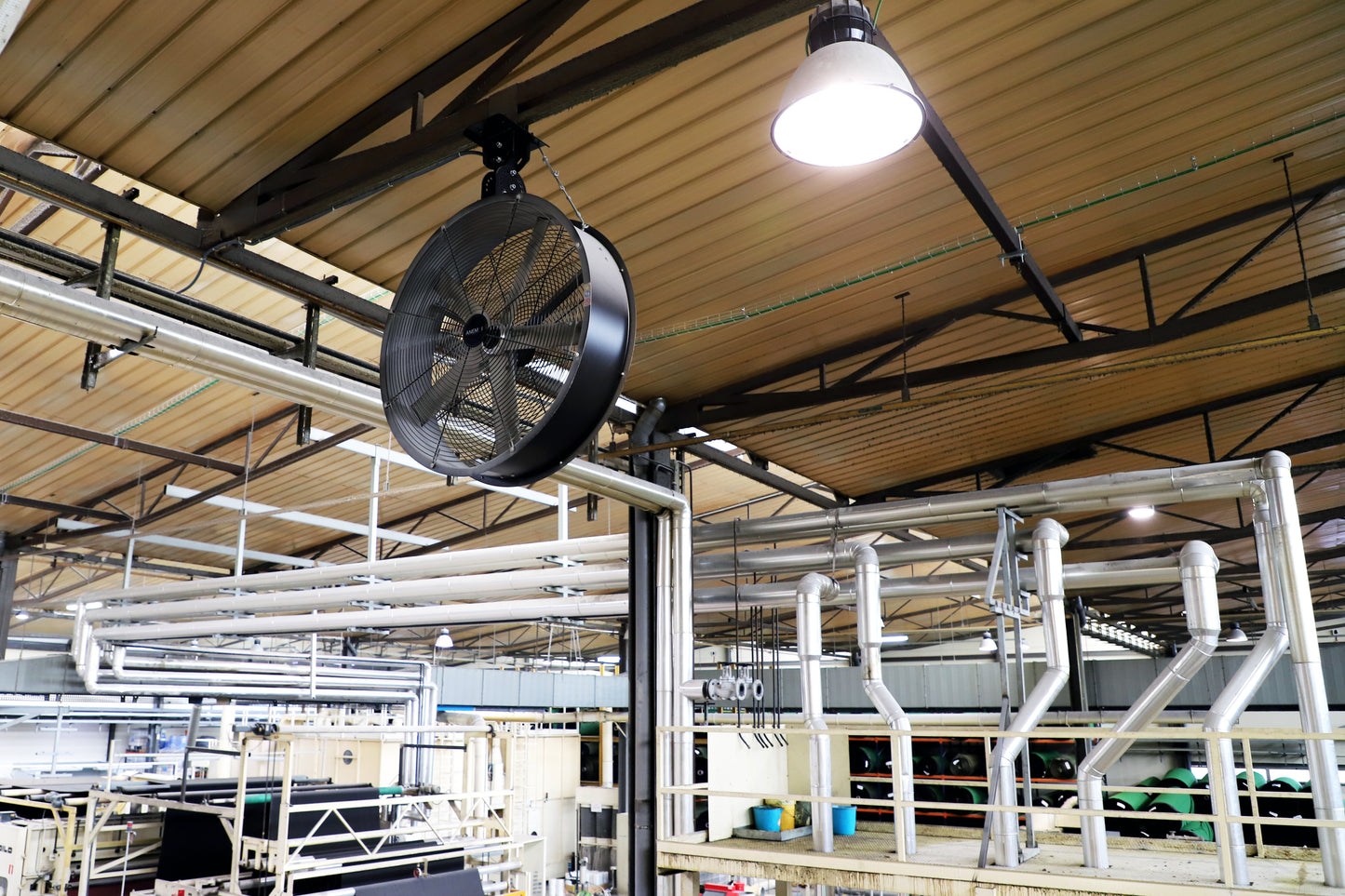

The AIRHANG fan is specifically designed for corridor‑type and linear areas where targeted airflow is needed. It features a 30º adjustable suspension bracket and a high‑efficiency BLDC motor to deliver strong, directed ventilation over extended lengths.
Key features include: 500 W power for approx. 56 m² coverage (Ø 0.85 m) or 700 W for approx. 84 m² (Ø 1.15 m); maximum speed up to 700 rpm or 450 rpm depending on model; airflow ranges from 16,800 m³/h to 25,200 m³/h; weight between 61 kg and 73 kg; suspension mount with angle adjustment for optimal directional air delivery in corridors, loading zones or narrow spaces.
Power
Power
500w, 220-380VACl, 50/60Hz
Max. speed
Max. speed
700 rpm
Air flow
Air flow
16.800m3/h
Coverage
Coverage
56m2
Weight
Weight
61Kg
Power
Power
700w, 220-380VACl, 50/60Hz
Max. speed
Max. speed
450 rpm
Air flow
Air flow
25.200m3/h
Coverage
Coverage
84m2
Weight
Weight
73Kg
